SFBSerial Class Reference

A serial communications "endpoint", implementing the SFB packet protocol, including baud rate negotiation (BRN). More...

#include <SFBSerial.h>

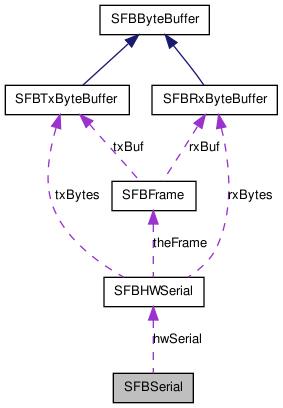

Collaboration diagram for SFBSerial:

[legend]


Public Member Functions
Initialization and termination
void	begin ()
	Start packet communication, operating under "full reflex control" with interrupt-based I/O.
void	begin (u32 baud, bool manual=true)
	Start packet communication, operating under "conscious" control or in "manual" byte-at-a-time mode.
void	reserve ()
	Reserve the RX and TX pins of this face for general-purpose I/Os, instead of serial communications.
void	end ()
	Do not use the RX and TX pins of this face, either for serial communications or for GPIOs.
Printing
void	print (const char *str)
	Same as facePrint(u8 face, const char * str) given this getFace().
void	print (const u8 *str, u32 len)
	Same as facePrint(u8 face, const u8 * str, u32 len) given this getFace().
void	print (int decimal)
	Same as facePrint(u8 face, int decimal) given this getFace().
void	print (unsigned int decimal)
	Same as facePrint(u8 face, unsigned int decimal) given this getFace().
void	print (long decimal)
	Same as facePrint(u8 face, long decimal) given this getFace().
void	print (unsigned long decimal)
	Same as facePrint(u8 face, unsigned long decimal) given this getFace().
void	print (long decimal, int code)
	Same as facePrint(u8 face, unsigned long decimal, int code) given this getFace().
void	print (double val)
	Same as facePrint(u8 face, double val) given this getFace().
void	println ()
	Same as facePrintln(u8 face) given this getFace().
void	println (const char *str)
	Same as facePrintln(u8 face, const char * str) given this getFace().
void	println (const u8 *str, u32 len)
	Same as facePrintln(u8 face, const u8 * str, u32 len) given this getFace().
void	println (int decimal)
	Same as facePrintln(u8 face, int decimal) given this getFace().
void	println (unsigned int decimal)
	Same as facePrintln(u8 face, unsigned int decimal) given this getFace().
void	println (long decimal)
	Same as facePrintln(u8 face, long decimal) given this getFace().
void	println (unsigned long decimal)
	Same as facePrintln(u8 face, unsigned long decimal) given this getFace().
void	println (long decimal, int code)
	Same as facePrintln(u8 face, long decimal) given this getFace().
void	println (double val)
	Same as facePrintln(u8 face, long val) given this getFace().
void	printlnCheckByte ()
	Same as facePrintlnCheckByte(u8 face) given this getFace().
Accessors
bool	isInUse ()
	Are we in use?
bool	isManualMode ()
	Are we in manual mode?
bool	isReflexMode ()
	Are we in reflex mode?
bool	isConsciousMode ()
	Are we in conscious mode?
void	switchToBlocking ()
u32	getBaud ()
	What is our baud rate?
bool	getOddParity ()
	Are we running odd parity (vs none)?
u32	getFace ()
	What is our face number?
bool	ready ()
	Is this SFBSerial currently capable of printing?
u32	inputBufferUsed ()
u32	outputBufferUsed ()
u32	inputBufferFree ()
u32	outputBufferFree ()
u32	brokenPackets ()
void	incrBrokenPacketCount ()
SFBHWSerial &	getHWSerial ()
	Access the underlying SFBHWSerial object that actually performs the input and output for this SFBSerial.
bool	backgroundProcessingActive ()
	Is this SFBSerial operating and in full reflex control?
Legacy byte-at-a-time
bool	available ()
	Check if at least one byte of input is available.
int	read ()
	Read the next byte from this serial face, if any are immediately available.
int	peek ()
	Peek at the next byte from this serial face, if any are immediately available, without consuming it.
Conscious packet handling
u8 *	readPacket ()
	Read the next packet from this serial face, if any are immediately available.
Configuration
void	setPreferredBaudCode (u8 code, bool renegotiateNow=false)
bool	dispatch (DispatchHandler dispatcher=0, u32 maxPackets=1)
void	suppress (const char type)
void	allow (const char type)
void	reflex (const char type, PacketHandler pfunc)
void	otherwise (PacketHandler pfunc)
Low-level and internal use
void	putcInterrupt (u8 byte)
	Low level routine to print a single byte, if possible.
void	terpriInterrupt ()
	Low level routine to terminate a packet, if possible.
void	putcBlocking (u8 byte)
	Low level routine to print a single byte.
void	terpriBlocking ()
	Low level routine to terminate a packet.
void	write (u8 byte)
void	write (const char *str)
void	write (u8 *buf, u32 len)
void	flush ()
	Flushes the face of incoming serial data.
	SFBSerial (int face)
	Construct an SFBSerial with face number face.
static void	startup_initialization ()
	Low level routine to initialize the SFBSerial subsystem.

Detailed Description

A serial communications "endpoint", implementing the SFB packet protocol, including baud rate negotiation (BRN).

The SFBSerial class delegates to hardware-specific SFBHWSerial objects to perform actual input and output; the class itself is responsible for performing BRN and presenting a generally uniform communications API.

Constructor & Destructor Documentation

SFBSerial::SFBSerial ( int face )

Construct an SFBSerial with face number face.

Intended for library internal use during system startup only.

Member Function Documentation

bool SFBSerial::available ( )

Check if at least one byte of input is available.

Only callable after the serial face has been started in 'manual' mode (i.e., via 'begin(BAUD_RATE)' or 'begin(BAUD_RATE,true)').

Returns:: true if and only if a byte can now be read() from this face, false otherwise.

Blinks:: E_API_ILLEGAL_STATE if the face has not been opened (most recently) in 'manual' mode.

bool SFBSerial::backgroundProcessingActive ( )

Is this SFBSerial operating and in full reflex control?

Returns:: true if this SFBSerial was started via a call to SFBSerial::begin() since the most recent call to SFBSerial::begin(u32 baud), SFBSerial::begin(u32 baud, bool manual), or SFBSerial::reserve(), and returns false otherwise.

void SFBSerial::begin	(	u32	baud,
		bool	manual = `true`
	)

Start packet communication, operating under "conscious" control or in "manual" byte-at-a-time mode.

Conscious control is selected if the manual argument is specified as false; manual mode is selected if manual is omitted or specified as true.

This method provides access to two of the four ways of using the RX and TX pins on an SFB face; the other two are:

Packet communication under "full reflex control" with interrupt-based I/O, via begin().

RX and TX used as GPIO pins rather than a serial port, via reserve().

The differences between "full reflex control" as initiated by begin(), and "conscious control" as can be initiated by this method, are:

Conscious control selects the baud rate explicitly, and so, unlike full reflex control, baud rate negotiation is not performed, and

Full reflex control triggers reflex handlers for received packets automatically (during delay() calls, and in between calls to the sketch loop() method), but conscious control does not. In conscious control the sketch must deliberately check for and handle available packets (via readPacket and/or dispatch()). If the sketch fails to call either method frequently enough to respond to arrived packets, the face's input buffer will fill and further packets will be discarded until room is available.

Under manual control, normal line-oriented packet processing and dispatching is circumvented, and instead each byte sent or received is treated as a packet with a packetLength() of 1. Outgoing bytes are sent literally with no framing or escaping, and incoming single-byte 'packets' can be accessed by calling read(). Note that all normal SFB packet communication is inherently line-buffered, and such manual control is the only mechanism (provided by the library) when byte-at-a-time round trip communications is required.

Parameters:

	baud	The baud rate to configure the hardware. The SFB is not limited to "standard baud rates"; on the board itself arbitrary baud rates in the range of perhaps 110 baud to 230,400 baud (or possibly even higher, depending on total interrupt load) can be specified.
	manual	If `true`, byte-at-a-time I/O is selected; if `false`, normal packet-oriented I/O is selected.

Side Effects:: The serial communications hardware in the SFBHWSerial supporting this object is configured appropriately, its transmit and receive buffers are SFBFrame::reset(), and the baud rate is set as indicated. The internal state machine for baud rate negotiation is shut down.

Example:

    void setup() {
      EastFace.begin(9600,false);          // Start east face at 9600 baud, conscious control
    }
    void MyDispatcher(u8 * packet, u8 face) {            // A special routine to 'dispatch' east packets
      if (packetLength(packet) > 0 && packet[0] == 'x')  // Check for our Packets Of Interest
        println("Received 'x' packet from east");        // Announce arrival to everybody
    }
    void loop() {
      EastFace.println("status");          // Talk to whatever's out there
      EastFace.dispatch(MyDispatcher, 10); // Call MyDispatcher up to 10 times, if packets are available
      delay(1000);                         // Wait a second
    }

    void setup() {
      SouthFace.begin(300);                // Start South at 300 baud, under byte-at-a-time manual control
    }
    void loop() {
      int ch;
      ch = SouthFace.read();               // See if a byte is available
      if (ch >= 0) {                       // We got something!  Do work on it
        if (ch >= 'A' && ch <= 'A')        // If upper case..
          ch += 'a'-'A';                   // ..convert it to lower case
        SouthFace.print((u8) ch, BYTE);    // and echo it back to them
      }
    }

void SFBSerial::begin ( )

Start packet communication, operating under "full reflex control" with interrupt-based I/O.

This method is one of the four ways of using the RX and TX pins on an SFB face; the other three are:

Packet communication under "conscious control" with interrupt-based I/O, via begin(u32, bool) with the second argument explicitly set to false.

Byte-by-byte communication under "manual control" with no packet dispatching, via begin(u32,bool) with the second argument omitted or set to true;

RX and TX used as GPIO pins rather than a serial port, via reserve().

"Full reflex control" as initiated by this method is the default mode of operation for the four faces. During initialization, after the sketch setup() routine has returned, this method is called automatically on any of the four SFB faces (NorthFace, SouthFace, EastFace, WestFace) that were not initialized in any of the other three ways.

Side Effects:: The serial communications hardware in the SFBHWSerial supporting this object is configured appropriately, and its transmit and receive buffers are SFBPacketIO::reset(). The internal state machine is initialized, starting the baud rate negotiation protocol, which commences by setting the baud to the SFBAUD_RENDEZVOUS rate, and then (asynchronously, after this method has returned) transmitting "probe packets" and listening for any responses.

Example:

    void setup() {
      NorthFace.begin();                   // Start a face explicitly now

      while (NorthFace.ready() == false)   // Wait until some SFB-aware entity has
        delay(1);                          // successfully negotiated with us

      NorthFace.println("foo");            // Then say something to them
    }

    ...

void SFBSerial::end ( )

Do not use the RX and TX pins of this face, either for serial communications or for GPIOs.

Cancels the effect of a begin() or a reserve() call; after calling this method, isInUse() will return false.

Side Effects:: The serial communications (UART) hardware in the SFBHWSerial supporting this object is disconnected and powered down. In addition, the RX-and-TX-as-GPIOs internal flags are cleared.

Since:: 0.9.11

void SFBSerial::flush ( )

Flushes the face of incoming serial data.

That is, any call to read() or available() will return only data received after all the most recent call to flush(). Note this call is legal whether the serial face was started in 'manual' mode (i.e., via 'begin(BAUD_RATE)' or 'begin(BAUD_RATE,true)'), or 'conscious' mode (via 'begin(BAUD_RATE,false)'), or full packet processing mode (via 'begin()') -- in the latter two cases all pending packets are discarded.

u32 SFBSerial::getBaud ( ) [inline]

What is our baud rate?

Returns:: our current baud rate.

u32 SFBSerial::getFace ( ) [inline]

What is our face number?

Returns:: our face code.

SFBHWSerial& SFBSerial::getHWSerial ( ) [inline]

Access the underlying SFBHWSerial object that actually performs the input and output for this SFBSerial.

Returns:: a reference to the underlying SFBHWSerial.

bool SFBSerial::getOddParity ( ) [inline]

Are we running odd parity (vs none)?

Returns:: true if odd parity, false is none.

bool SFBSerial::isConsciousMode ( )

Are we in conscious mode?

Returns:: true if we're running as a serial port in conscious packet handling mode.

bool SFBSerial::isInUse ( )

Are we in use?

Returns:: true if in use as either serial port or GPIOs.

bool SFBSerial::isManualMode ( )

Are we in manual mode?

Returns:: true if we're running as a serial port in byte-at-a-time mode.

bool SFBSerial::isReflexMode ( )

Are we in reflex mode?

Returns:: true if we're running as a serial port in reflex packet handling mode.

int SFBSerial::peek ( )

Peek at the next byte from this serial face, if any are immediately available, without consuming it.

Only callable after the serial face has been started in 'manual' mode (i.e., via 'begin(BAUD_RATE)' or 'begin(BAUD_RATE,true)'). Any byte returned by this method is not removed from the input stream, and the same byte will be returned on the next call to via read.

Returns:: the next byte to be read, greater than or equal to 0, or -1 if no byte is immediately available to be read

Blinks:: E_API_ILLEGAL_STATE if the face has not been opened (most recently) in 'manual' mode.

Since:: 0.9.3

void SFBSerial::print ( double val ) [inline]

Same as facePrint(u8 face, double val) given this getFace().

void SFBSerial::print	(	long	decimal,
		int	code
	)			`[inline]`

Same as facePrint(u8 face, unsigned long decimal, int code) given this getFace().

void SFBSerial::print ( unsigned long decimal ) [inline]

Same as facePrint(u8 face, unsigned long decimal) given this getFace().

void SFBSerial::print ( long decimal ) [inline]

Same as facePrint(u8 face, long decimal) given this getFace().

void SFBSerial::print ( unsigned int decimal ) [inline]

Same as facePrint(u8 face, unsigned int decimal) given this getFace().

void SFBSerial::print ( int decimal ) [inline]

Same as facePrint(u8 face, int decimal) given this getFace().

void SFBSerial::print	(	const u8 *	str,
		u32	len
	)			`[inline]`

Same as facePrint(u8 face, const u8 * str, u32 len) given this getFace().

void SFBSerial::print ( const char * str ) [inline]

Same as facePrint(u8 face, const char * str) given this getFace().

void SFBSerial::println ( double val ) [inline]

Same as facePrintln(u8 face, long val) given this getFace().

void SFBSerial::println	(	long	decimal,
		int	code
	)			`[inline]`

Same as facePrintln(u8 face, long decimal) given this getFace().

void SFBSerial::println ( unsigned long decimal ) [inline]

Same as facePrintln(u8 face, unsigned long decimal) given this getFace().

void SFBSerial::println ( long decimal ) [inline]

Same as facePrintln(u8 face, long decimal) given this getFace().

void SFBSerial::println ( unsigned int decimal ) [inline]

Same as facePrintln(u8 face, unsigned int decimal) given this getFace().

void SFBSerial::println ( int decimal ) [inline]

Same as facePrintln(u8 face, int decimal) given this getFace().

void SFBSerial::println	(	const u8 *	str,
		u32	len
	)			`[inline]`

Same as facePrintln(u8 face, const u8 * str, u32 len) given this getFace().

void SFBSerial::println ( const char * str ) [inline]

Same as facePrintln(u8 face, const char * str) given this getFace().

void SFBSerial::println ( ) [inline]

Same as facePrintln(u8 face) given this getFace().

void SFBSerial::printlnCheckByte ( )

Same as facePrintlnCheckByte(u8 face) given this getFace().

void SFBSerial::putcBlocking ( u8 byte )

Low level routine to print a single byte.

Intended for library internal use only. Designed for use when the underlying SFBHWSerial is being run via blocking calls (in other words, 'manual' mode only).

Parameters:

byte

the byte to print

Side Effects:: A byte is output to the hardware, which may or may not have any externally visible effects, depending on hardware configuration.

void SFBSerial::putcInterrupt ( u8 byte )

Low level routine to print a single byte, if possible.

Intended for library internal use only. Designed for use when the underlying SFBHWSerial is being run via interrupts (in other words, in 'reflex' or 'conscious', but not 'manual' modes).

Parameters:

byte

the byte to print

Side Effects:: If ready() is true, a byte is printed to the underlying SFBHWSerial, with whatever side effects that implies.

int SFBSerial::read ( )

Read the next byte from this serial face, if any are immediately available.

Only callable after the serial face has been started in 'manual' mode (i.e., via 'begin(BAUD_RATE)' or 'begin(BAUD_RATE,true)').

Returns:: the next byte read, greater than or equal to 0, or -1 if no byte can immediately be read

Blinks:: E_API_ILLEGAL_STATE if the face has not been opened (most recently) in 'manual' mode.

u8 * SFBSerial::readPacket ( )

Read the next packet from this serial face, if any are immediately available.

Only callable after the serial face has been started in 'conscious' mode (i.e., via 'begin(BAUD_RATE,false)'). Returns a null pointer if no complete packet is available. When a non-null pointer is returned, it points to memory owned by the core libraries, not the sketch, and the returned pointer is valid only ubtil the next call to readPacket on the same face (or the next call on begin, reserve, or flush on the face, whichever comes first.)

Returns:: a pointer to the next packet read, or 0 if no complete packet is currently available.

Blinks:: E_API_ILLEGAL_STATE if the face has not been opened (most recently) in 'conscious' mode.

Side Effects:: On a non-null return, the input corresponding to the returned packet has been removed from the serial face input stream.

Since:: 0.9.3

bool SFBSerial::ready ( )

Is this SFBSerial currently capable of printing?

Returns:: true if one of the following is true:

this SFBSerial was started under conscious control (using SFBSerial::begin(u32 baud)), or

this SFBSerial was started under manual control (using SFBSerial::begin(u32 baud, bool manual) with manual omitted or set to true), or

this SFBSerial was started under reflex control (using SFBSerial::begin()) and a successfully negotiated baud rate is currently in use.

and returns false otherwise.

void SFBSerial::reserve ( )

Reserve the RX and TX pins of this face for general-purpose I/Os, instead of serial communications.

This method is one of the four ways of using the RX and TX pins on an SFB face; the other three are:

Packet communication under "full reflex control" with interrupt-based I/O, via begin().

Packet communication under "conscious control" with interrupt-based I/O, via begin(u32,bool) with the second argument explicitly set to false.

Byte-by-byte communication under "manual control" with no packet dispatching, via begin(u32,bool) with the second argument omitted or set to true;

Although there is no explicit 'end()' method to bookend a 'begin()', calling reserve() has that effect. After calling reserve(), the FACE_RX_PIN and FACE_TX_PIN can be configured and used like any other GPIOs.

Side Effects:: The serial communications (UART) hardware in the SFBHWSerial supporting this object is disconnected and powered down, and internal flags are set to record that the pins are reserved for GPIO usage.

Example:

    void setup() {
      WestFace.reserve();              // Don't do serial on the west face (say we need those pins)
      pinMode(WEST_RX_PIN, OUTPUT);    // Make WEST RX an output (even though it's normally an input)..
      pinMode(WEST_TX_PIN, INPUT);     // ..and vv for WEST TX -- just to show we can.
    }
    void loop() {
      digitalWrite(WEST_RX_PIN, digitalRead(WEST_TX_PIN));  // Do whatever with our digital pins..
      println("Are we there yet?");    // Will go out all faces _except_ WestFace, which
      delay(1000);                     // we reserved in setup()..
    }

void SFBSerial::startup_initialization ( ) [static]

Low level routine to initialize the SFBSerial subsystem.

Intended for library internal use during system startup only.

Side Effects:: The SFBSerial subsystem is initialized: Reflexes are installed for several packet types, SFBAlarm's are created to manage timeouts during communications, etc.

void SFBSerial::terpriBlocking ( )

Low level routine to terminate a packet.

Intended for library internal use only. Designed for use when the underlying SFBHWSerial is being run via blocking calls (in other words, 'manual' mode only).

Side Effects:: A single newline byte (ASCII '
', value 10, 0xa) is output to the hardware, which may or may not have any externally visible effects, depending on hardware configuration.

void SFBSerial::terpriInterrupt ( )

Low level routine to terminate a packet, if possible.

Intended for library internal use only. Designed for use when the underlying SFBHWSerial is being run via interrupts (in other words, in 'reflex' or 'conscious', but not 'manual' modes).

Parameters:

byte

the byte to print

Side Effects:: If ready() is true, the current packet in the underlying SFBHWSerial is terminated, with whatever side effects that implies.

The documentation for this class was generated from the following files:

src/include/SFBSerial.h
src/components/library/SFBSerial.cpp

SFBSerial Class Reference

Public Member Functions

Low-level and internal use

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
