SFBReactor.h File Reference

Register packet handlers and dispatch packets. More...

#include "SFBTypes.h"
#include "SFBAssert.h"

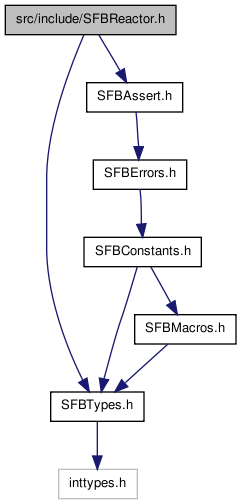

Include dependency graph for SFBReactor.h:

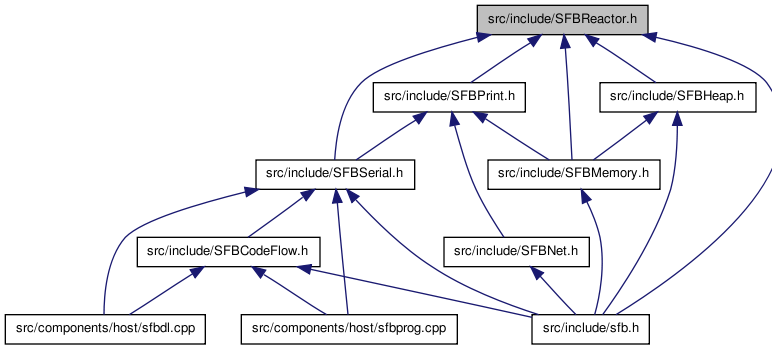

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  GRL
 A GRL is a "General Reflex Locator". More...
struct  SFBGRLMasterTable
 The description of all the known arrays-of-PacketHandler's 'reflex tables'. More...
struct  SFBDispatchEntry
 An SFBDispatchEntry describes an SFB reflex. More...
class  SFBReactor
 The SFBReactor manages the SFB reflex triggering system: It determines how an SFB will react to any given packet type. More...
class  SFBBrainReflex
 A 'convenience class' (with a prebuilt instance Brain) which provides a means of declaring reflexes that trigger at the "brain" -- i.e., after the individual faces and the Spine. More...
class  SFBSpineReflex
 A 'convenience class' (with a prebuilt instance Spine) which provides a means of declaring reflexes that trigger at the "spine" -- i.e., after the individual faces, but before the Brain. More...

Defines

#define MAX_GRL_TABLES   7
 The maximum number of tables of GRLs that can be defined.
#define MAX_REACTORS   200
#define MAX_CASUAL_REFLEXES   10
 The maximum number of packet handlers that can be used in reflexes 'casually' -- i.e., without making a packet handler array and calling SFBReactor::reflexes() (which see).
#define TRIGGER_SET_TYPE   s16
#define MAX_NESTED_TRIGGERS   (sizeof(TRIGGER_SET_TYPE)*8)

Typedefs

typedef void(* PacketHandler )(u8 *packet)
 A pointer to a function that handles packets.
typedef void(* DispatchHandler )(u8 *packet, u8 face)

Functions

bool isNone (GRL g)
GRL makeGRL (u8 table, u8 entry)
void initGRL (GRL &g, u8 table=0, u8 entry=0)
void reflex (const char type, PacketHandler ph, int flags=SFBReactor::TRIGGER_SPINE)
 Equivalent to Body.reflex(type,ph,flags).

Variables

SFBReactor Body
 The 'central locus' for reacting to packets.
SFBBrainReflex Brain
 An instance of SFBBrainReflex (which see) for creating 'brain level' reflexes.
SFBSpineReflex Spine
 An instance of SFBSpineReflex (which see) for creating 'spinal' reflexes.


Detailed Description

Register packet handlers and dispatch packets.

Author:
David H. Ackley.
Date:
(C) 2009 All rights reserved.
Code License:
The GNU Lesser General Public License
License Note:
All code samples shown in documentation are placed into the public domain.

Define Documentation

#define MAX_GRL_TABLES   7

The maximum number of tables of GRLs that can be defined.

Calls to SFBReactor::reflexes draw against this limit. This value consumes BODYRAM at the rate of 5*MAX_GRL_TABLES.


Typedef Documentation

typedef void(* PacketHandler)(u8 *packet)

A pointer to a function that handles packets.

This is the signature of user-defined 'reflexes'
