SFBTicker.h File Reference

A basic 'where do the cycles go?' profiling system. More...

#include "SFBTypes.h"
#include "SFBHWPins.h"
#include "SFBHWMisc.h"

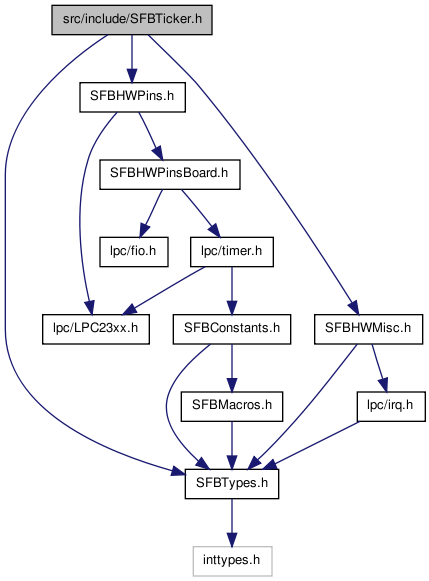

Include dependency graph for SFBTicker.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	SFBTicker
	The short-term, high-resolution profiling information maintained by the core. More...
class	SFBProfile
	A profiling system providing millisecond resolution for over a month's worth of runtime. More...
Enumerations
enum	SFBTickerCategories {   TICKER_BACKGROUND,   TICKER_SERIAL_ISR,   TICKER_OTHER_ISR,   TICKER_PACKET_HANDLER,   TICKER_ALARM_HANDLER,   TICKER_SKETCH0,   TICKER_SKETCH1,   TICKER_SKETCH2,   MAX_TICKERS }
	The categories used by Ticker and Profile to record time usage. More...
Variables
SFBTicker	Ticker
	The short-term, high-resolution profiling system object.
SFBProfile	Profile
	The longer-term, lower-resolution profiling system object.

---

Detailed Description

A basic 'where do the cycles go?' profiling system.

Author:

David H. Ackley.

Date:

(C) 2009 All rights reserved.

Code License:

The GNU Lesser General Public License

License Note:

All code samples shown in documentation are placed into the public domain.

Since:

0.9.13

---

Enumeration Type Documentation

enum SFBTickerCategories

The categories used by Ticker and Profile to record time usage.

Since:

0.9.13

Enumerator:

TICKER_BACKGROUND	All time not otherwise categorized, including time used by the setup() and loop() functions.
TICKER_SERIAL_ISR	Time on interrupt-level serial I/O, moving raw bytes between the packet buffers and the serial hardware buffers.
TICKER_OTHER_ISR	Non-serial interrupt time, including overhead on all interrupts, the core timer ISR, and any sketch ISR's such as used with SFBHWTimer.
TICKER_PACKET_HANDLER	Time in packet handlers, core and sketch.
TICKER_ALARM_HANDLER	Time in alarm handlers, core and sketch.
TICKER_SKETCH0	Time flagged by the sketch as 'SKETCH0' using SFBTicker::pushTime() and SFBTicker::popTime().
TICKER_SKETCH1	Time flagged by the sketch as 'SKETCH1' using SFBTicker::pushTime() and SFBTicker::popTime().
TICKER_SKETCH2	Time flagged by the sketch as 'SKETCH2' using SFBTicker::pushTime() and SFBTicker::popTime().

---

Variable Documentation

SFBProfile Profile

The longer-term, lower-resolution profiling system object.

See Ticker for access to shorter-term, higher-resolution profiling data.

Examples:

profile2.cpp, profile3.cpp, and speed4.cpp.

SFBTicker Ticker

The short-term, high-resolution profiling system object.

See Profile for access to longer-term, lower-resolution profiling data.

Examples:

profile1.cpp, and profile3.cpp.
