SFBCodeFlow.h File Reference

The SFB Code Flow protocol allows SFB's to program each other. More...

#include "SFBTypes.h"
#include "SFBConstants.h"
#include "SFBAssert.h"
#include "SFBProvenance.h"
#include "SFBSerial.h"

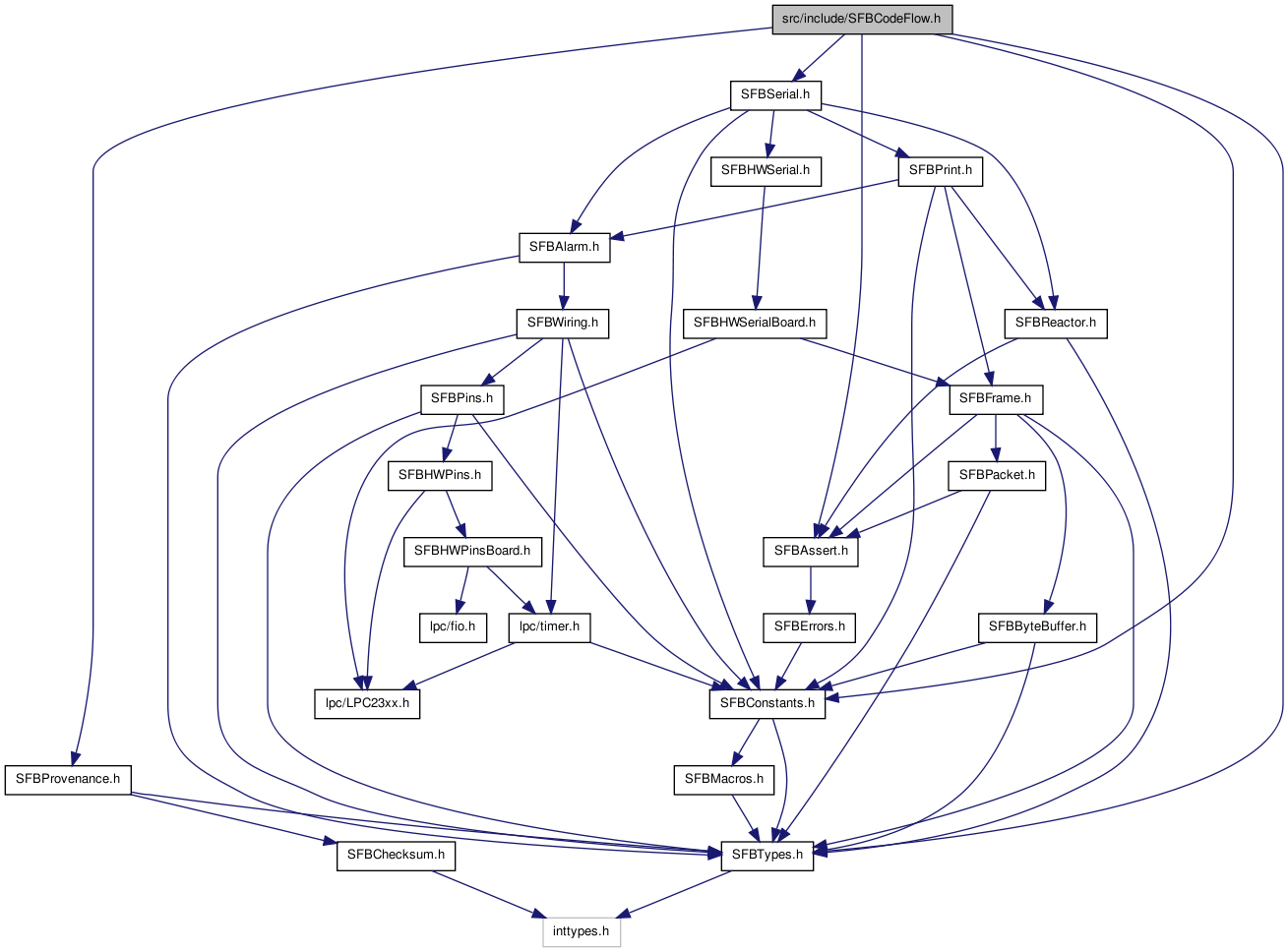

Include dependency graph for SFBCodeFlow.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef void(*	CodeFlowStatusCallback )(u8 face, CodeFlowStatus status)
Enumerations
enum	{   CHECKSUM_IGNORE,   CHECKSUM_CHECK,   CHECKSUM_GENERATE }
enum	CodeFlowStatus {   CODE_FLOW_INIT,   CODE_FLOW_IDLE,   CODE_FLOW_ACTIVE,   CODE_FLOW_SUCCEEDED }
Functions
u8	sectorOfAddress (u32 address)
u32	sectorStart (u8 sectorNumber)
u32	sectorSize (u8 sectorNumber)
u32	sectorEnd (u8 sectorNumber)
bool	plausibleProvenance (SFBProvenance *p, uptr startAddr, uptr endAddr)
	Do limited checks on the potential validity of a provenance, considering sanity checks that depend only on the contents of the provenance block itself.
bool	validProvenance (SFBProvenance *p, uptr startAddr, uptr endAddr, int checksumMode=CHECKSUM_CHECK)
	Do a full check of a provenance+contiguous program.
SFBProvenance *	findProvenance (uptr startAddr, uptr endAddr, int checksumMode=CHECKSUM_CHECK)
void	programServerDispatcher (u8 *packet)
void	programServerInit (u8 face)
void	programServerSetSketch (const volatile SFBProvenance *theSketch, u32 startAddress, uptr addressOffset, u8 pflags=0)
void	printPhSketchInfo (u8 toFace, const volatile SFBProvenance *theSketch)
bool	announcePhSketchInfoIfAny (u8 toFace)
void	setCodeFlowStatusCallback (CodeFlowStatusCallback ptr)
int	wantPhPacketCodeUpdate (u8 *packet) __attribute__((weak))
	0 if we want the code <0 if packet is not a valid 'Ph' format >0 if packet is a valid 'Ph' but we don't want what it offers
void	initProgramServerSketch () __attribute__((weak))

---

Detailed Description

The SFB Code Flow protocol allows SFB's to program each other.

Author:

David H. Ackley.

Date:

(C) 2008 All rights reserved.

Code License:

The GNU Lesser General Public License

License Note:

All code samples shown in documentation are placed into the public domain.

---

Function Documentation

bool plausibleProvenance	(	SFBProvenance *	p,
		uptr	startAddr,
		uptr	endAddr
	)

Do limited checks on the potential validity of a provenance, considering sanity checks that depend only on the contents of the provenance block itself.

(Meaning: No checksum computation, and no footer checking.) plausibleProvenance can be called on a 'detached' provenance, so long as the startAddr and endAddr are specified properly. For size computation purposes, it is assumed that the provenance would be found directly at startAddr.

bool validProvenance	(	SFBProvenance *	p,
		uptr	startAddr,
		uptr	endAddr,
		int	checksumMode
	)

Do a full check of a provenance+contiguous program.

The entire address range implied by the provenance and its program length must fit in startAddr..endAddr, the provenance must be sane, and the checksum may be calculated and checked or stored, as indicated by checksumMode.

A 'detached' provenance cannot be checked by this method. (See plausibleProvenance).
