SFBProvenance.h File Reference

Support for tracking sketch origins data. More...

#include "SFBTypes.h"
#include "SFBChecksum.h"

Include dependency graph for SFBProvenance.h:

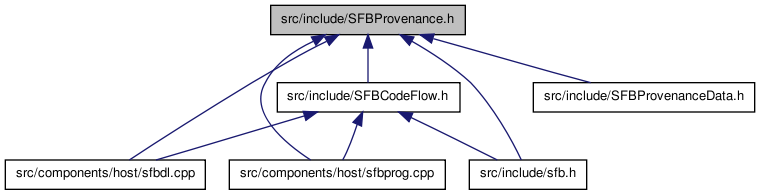

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SFBProvenance
	An SFBProvenance provides information that describes a sketch as a physical artifact. More...
Defines
#define	SFB_PROVENANCE_MAGIC   0xC300A5FB
	The magic value indicating the start of the checksummed region of a sketch.
#define	SFB_PROVENANCE_CIGAM   0xBF5A003C
	The "backwards" magic value indicating the end of an SFBProvenance block (although not the end of the checksummed region of a sketch).
#define	SFB_PROVENANCE_NZTRX   (~SFB_PROVENANCE_MAGIC)
	The "inverted" magic value indicating the end of the checksummed region of a sketch.
Enumerations
enum	BootProgrammingFlags {   PROGRAMMING_FLAG_VERBOSE = 0x01,   PROGRAMMING_FLAG_QUIET = 0x02,   PROGRAMMING_FLAG_CHECKOFF = 0x04,   PROGRAMMING_FLAG_RSRVD4 = 0x08,   PROGRAMMING_FLAG_RSRVD5 = 0x10,   PROGRAMMING_FLAG_RSRVD6 = 0x20,   PROGRAMMING_FLAG_RSRVD7 = 0x40,   PROGRAMMING_FLAG_RSRVD8 = 0x80 }

---

Detailed Description

Support for tracking sketch origins data.

Author:

David H. Ackley.

Date:

(C) 2008 All rights reserved.

Code License:

The GNU Lesser General Public License

License Note:

All code samples shown in documentation are placed into the public domain.

---

Define Documentation

#define SFB_PROVENANCE_NZTRX   (~SFB_PROVENANCE_MAGIC)

The "inverted" magic value indicating the end of the checksummed region of a sketch.

Placed in flash memory after all sketch code by the build system.

---

Enumeration Type Documentation

enum BootProgrammingFlags

Enumerator:

PROGRAMMING_FLAG_VERBOSE	Report extra status messages during burns.
PROGRAMMING_FLAG_QUIET	Report minimal status messages during burns.
PROGRAMMING_FLAG_CHECKOFF	Don't trust existing sector checksums during a burn.
PROGRAMMING_FLAG_RSRVD4	Reserved for future use; value should be zero and ignored.
PROGRAMMING_FLAG_RSRVD5	Reserved for future use; value should be zero and ignored.
PROGRAMMING_FLAG_RSRVD6	Reserved for future use; value should be zero and ignored.
PROGRAMMING_FLAG_RSRVD7	Reserved for future use; value should be zero and ignored.
PROGRAMMING_FLAG_RSRVD8	Reserved for future use; value should be zero and ignored.
