SFBEeprom.h File Reference

Reading and writing the SFB onboard EEPROM. More...

#include "SFBTypes.h"

Include dependency graph for SFBEeprom.h:

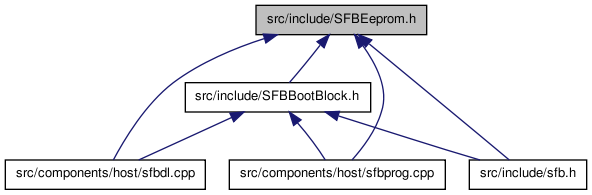

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

class SFBEeprom

Wrapper class implementing the EEPROM object for access to the EEPROM. More...

Defines

#define EEPROM_SIZE_BYTES   (1<<14)

Total raw EEPROM size.

#define EEPROM_BYTES_PER_PAGE   64

Bytes per page in the EEPROM.

#define EEPROM_RESERVED_PAGES   2

Pages reserved at end of EEPROM for SFB bootblock.

#define EEPROM_RESERVED_BYTES   (EEPROM_RESERVED_PAGES*EEPROM_BYTES_PER_PAGE)

Bytes reserved at end of EEPROM for SFB bootblock.

Functions

void eepromWrite (u32 addr, const u8 *source, u32 length)

Write data from memory to the EEPROM data partition.

void eepromRead (u32 addr, u8 *dest, u32 length)

Read data from the EEPROM data partition into RAM.

void eepromWait (bool busyWait=false)

Wait for any in-progress EEPROM write to complete.

u32 eepromSize ()

Get the EEPROM data partition size.

void eepromWriteReserved (const u32 addr, const u8 *data, const u32 length)

Write data from memory to the EEPROM SFB reserved partition.

void eepromReadReserved (const u32 addr, u8 *data, const u32 length)

Read data from the EEPROM SFB reserved partition into RAM.

void eeprom_startup_initialization ()

Initialize the EEPROM subsystem.

Variables

SFBEeprom EEPROM

The premade instance of the SFBEeprom class, used for reading and writing the EEPROM.

Detailed Description

Reading and writing the SFB onboard EEPROM.

The SFB contains a 16KB EEPROM for storing "persistent" data. An EEPROM (Electrically-Eraseable Programmable Read-Only Memory) is a device that retains data for long periods, even when powered off, while also allowing the stored data to be altered and updated under program control, without any additional hardware.

Out of the 16,384 bytes in the SFB EEPROM, the last 128 (EEPROM_RESERVED_BYTES) bytes are reserved for SFB library use, while the first 99.2% of the EEPROM is available for sketch use.

Those final 128 EEPROM bytes are called the "SFB bootblock" or the "EEPROM reserved partition", while the initial 16,256 bytes are called the "EEPROM data partition". Within the EEPROM data partition, there is no predefined structure or "file system", there are just persistent bytes, located at EEPROM addresses from 0 through 16255, available to be read and written however the sketch wishes.

Hardware and implementation details:

The EEPROM is arranged in "pages" each of which is 64 (EEPROM_BYTES_PER_PAGE) bytes long.

In general, reading from the EEPROM is a relatively fast operation, taking a small number of microseconds per byte read, but there is also "command overhead" time, so fewer, larger reads will perform better than more, smaller ones:

      const int N = 1000;
      char buf[N];
      for (u32 i = 0; i < N; ++i) eepromRead(i, &buf[i], 1);  // Read first N bytes of EEPROM (slowly)
      eepromRead(0,buf,N);                                    // Has the same result, but much faster

Compared to EEPROM reading, writing to the EEPROM is slow, on the order of perhaps 5 milliseconds. That time is required for each page of EEPROM written to, regardless of how many bytes per page are affected:

      const int N = 50;
      char buf[N] = ..some data..
      eepromWrite(100,buf,N);   // Write 50 bytes to addrs 100..149 -- hits two pages, so TWO write cycles
      eepromWrite(128,buf,N);   // Write 50 bytes to addrs 128..177 -- hits one page, so ONE write cycle

Note, however, that eepromWrite() returns as soon as the (final) write cycle has started, without waiting for it to complete, so if a single eepromWrite() call is made that affects only a single page of EEPROM, it will return relatively quickly. However, the write cycle must still complete before other EEPROM operations can commence:

      char buf[3];

      u32 start = micros();               // Get start time, then
      eepromWrite(0,"foo",3);             // Write 3 bytes into one page

      u32 split = micros();               // Get split time
      eepromRead(64,buf,3);               // Read 3 bytes from one page

      u32 end = micros();                 // Get end time

      pprintf("Write=%d, read=%d\n", split-start, end-split); // Shows read slower than write!

because the eepromRead() has to wait for the write cycle started by the eepromWrite() to complete. By comparison:

      char buf[3];

      u32 start = micros();               // Get start time, then
      eepromWrite(0,"foo",3);             // Write 3 bytes into one page
      eepromWait();                       // Wait for write cycle to complete

      u32 split = micros();               // Get split time
      eepromRead(64,buf,3);               // Read 3 bytes from one page

      u32 end = micros();                 // Get end time

      pprintf("Write=%d, read=%d\n", split-start, end-split); // Now read much faster than write!

Author:: David H. Ackley.

Date:: (C) 2009 All rights reserved.

Code License:: The GNU Lesser General Public License

License Note:: All code samples shown in documentation are placed into the public domain.

Function Documentation

void eeprom_startup_initialization ( )

Initialize the EEPROM subsystem.

Intended for library internal use only. Called automatically during SFB system startup.

Side Effects:: The EEPROM subsystem is initialized.

void eepromRead	(	u32	addr,
		u8 *	dest,
		u32	length
	)

Read data from the EEPROM data partition into RAM.

Wait for any in-progress EEPROM write to complete, if necessary, then read length bytes from EEPROM data partition locations starting at addr (addr..addr+length-1) into RAM addresses starting at dest (dest[0]..dest[length-1]).

Parameters:

	addr	EEPROM data partition address to begin reading from.
	dest	RAM address to begin writing to.
	length	Number of bytes to read.

Blinks:: E_API_NULL_POINTER if dest is null.

Blinks:: E_API_EEPROM_ADDRESS if addr + length is not less than eepromSize()

Side Effects:: RAM is written if length is non-zero.

Examples:: eeprom1.cpp, eeprom2.cpp, eeprom3.cpp, and eeprom4.cpp.

void eepromReadReserved	(	const u32	addr,
		u8 *	data,
		const u32	length
	)

Read data from the EEPROM SFB reserved partition into RAM.

Intended for library internal use. Wait for any in-progress EEPROM write to complete, if necessary, then read length bytes from EEPROM SFB reserved partition locations starting at addr (addr..addr+length-1) into RAM addresses starting at data (data[0]..data[length-1]).

Parameters:

	addr	EEPROM data partition address to begin reading from.
	data	RAM address to begin writing to.
	length	Number of bytes to read.

Blinks:: E_API_NULL_POINTER if dest is null.

Blinks:: E_API_EEPROM_ADDRESS if addr + length is not less than eepromSize()

Side Effects:: RAM is written if length is non-zero.

u32 eepromSize ( )

Get the EEPROM data partition size.

Returns:: The size of the EEPROM data partition

void eepromWait ( bool busyWait = false )

Wait for any in-progress EEPROM write to complete.

Normally doesn't need to be called explicitly, since the other EEPROM routines wait as needed.

Parameters:

busyWait Specify how to wait. If bustWait is false or omitted, use delay(u32) function to perform the waiting, otherwise use delayMicroseconds(u32).

Blinks:: E_API_EEPROM_RESPONSE if the EEPROM fails to respond in a timely manner (i.e., four times its datasheet-specified maximum latency).

Examples:: eeprom3.cpp.

void eepromWrite	(	u32	addr,
		const u8 *	source,
		u32	length
	)

Write data from memory to the EEPROM data partition.

Writes length bytes from source (source[0]..source[length-1]) to EEPROM locations starting at addr (addr..addr+length-1).

Parameters:

	addr	EEPROM data partition address to begin writing to.
	source	Memory address to begin reading from.
	length	Number of bytes to write.

Blinks:: E_API_NULL_POINTER if source is null.

Blinks:: E_API_EEPROM_ADDRESS if addr+length is not less than eepromSize()

Attention:: WARNING! This routine returns before the EEPROM write cycle has completed. If that is a problem -- e.g. because the board is about to power down -- then eepromWait() should be called after eepromWrite().

Side Effects:: EEPROM memory is written if length is non-zero.

Examples:: eeprom1.cpp, eeprom2.cpp, eeprom3.cpp, and eeprom4.cpp.

void eepromWriteReserved	(	const u32	addr,
		const u8 *	data,
		const u32	length
	)

Write data from memory to the EEPROM SFB reserved partition.

Intended for library internal use only! Improper use can corrupt an SFB's bootblock.

Writes length bytes from data (data[0]..data[length-1]) to EEPROM reserved locations starting at addr (addr..addr+length-1).

Parameters:

	addr	EEPROM reserved partition address to begin writing to.
	data	Memory address to begin reading from.
	length	Number of bytes to write.

Blinks:: E_API_NULL_POINTER if data is null.

Blinks:: E_API_EEPROM_ADDRESS if addr + length is greater than EEPROM_RESERVED_BYTES

Attention:: WARNING! This routine returns before the EEPROM write cycle has completed. If that is a problem -- e.g. because the board is about to power down -- then eepromWait() should be called after eepromWriteReserved() returns.

Side Effects:: EERPROM memory is written if length is non-zero.
